ObjectVision Frontend

ObjectVision is a cutting-edge object detection platform that leverages advanced machine learning techniques for real-time object identification and analysis. The frontend of ObjectVision is built using Next.js 15, TypeScript, and ShadCN for the UI components, making it a modern and robust solution for interacting with the platform.

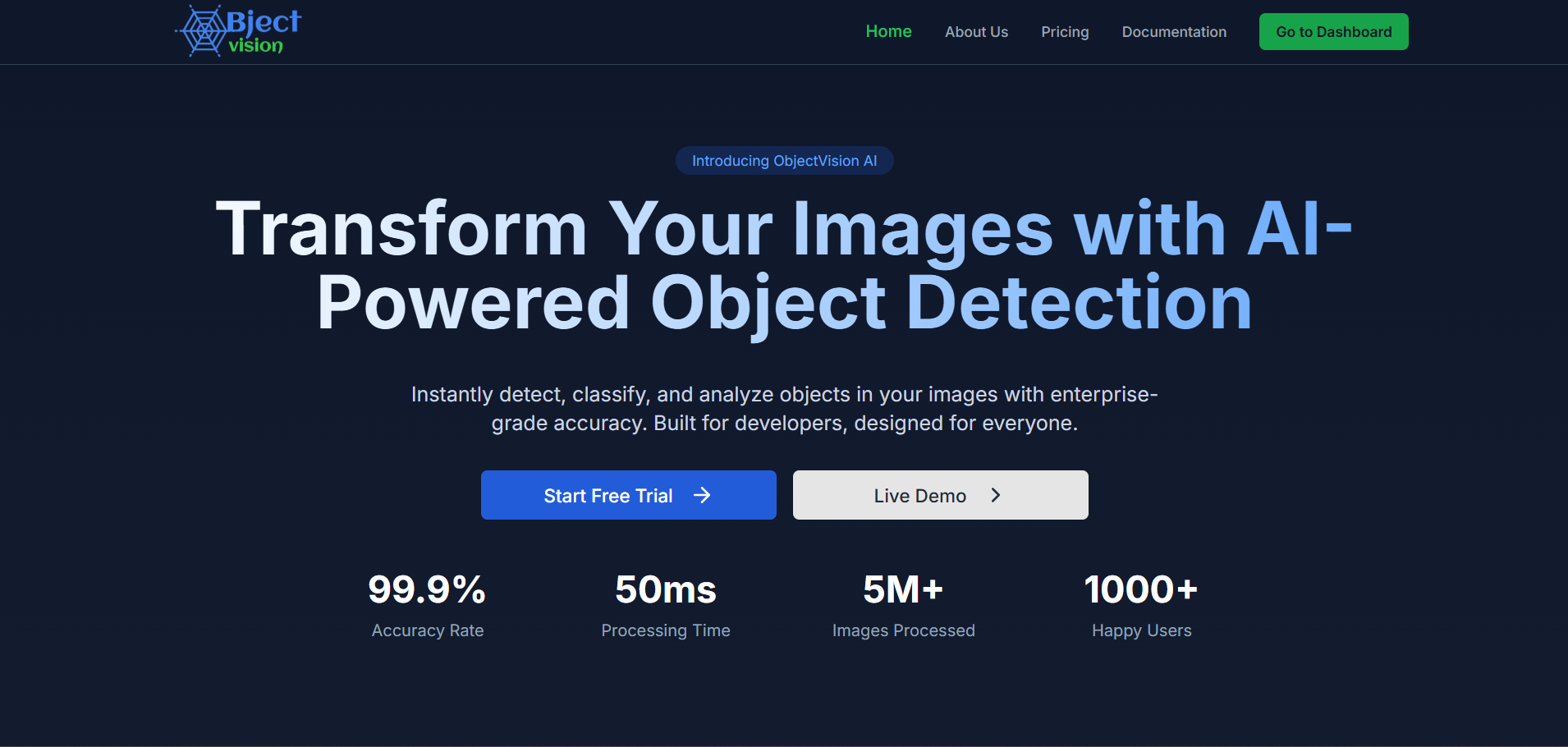

[ Portal Image ]

📑 Table of Contents

Features
Installation
Development Setup
Project Structure
Technologies Used
Environment Variables
API Integration
State Management
Building for Production
Testing
Continuous Integration
Performance Optimization
Contributing
Troubleshooting
License
Contact

🌟 Features

ObjectVision Frontend provides a comprehensive set of features:

Real-time Object Detection: Process images and video streams with instant visual feedback
Interactive Dashboard: Monitor detection statistics and metrics through intuitive visualizations
Batch Processing: Upload and process multiple files at once with progress tracking
Customizable Detection Parameters: Adjust confidence thresholds and detection models
Export & Share: Download detection results in various formats or share via direct links
Responsive Design: Seamless experience across desktop, tablet, and mobile devices
Dark/Light Mode: Support for user preference and system theme detection
Accessibility: WCAG 2.1 compliant interface with keyboard navigation support

📥 Installation

To get started with the frontend of ObjectVision, follow these steps:

Prerequisites:
- Node.js (v18.0.0 or later)
- npm (v9.0.0 or later)
- Git

Clone the repository:

git clone https://github.com/imtiaj-007/ObjectVision-Frontend.git
cd objectvision-frontend

Install dependencies:
```
npm install --legacy-peer-deps
```
Setup environment variables:
```
cp .env.example .env.development
```
Edit .env.development with your configuration (see Environment Variables section).
Generate TypeDoc documentation (optional):
```
npm run docs
```

💻 Development Setup

Start the development server:
```
npm run dev
```
This launches the frontend app at http://localhost:3000. Changes are automatically reflected in the browser.
TypeScript development tips:
- Ensure your IDE has TypeScript support enabled
- Run type checking in watch mode with npm run type-check:watch
- Use the provided TSConfig for consistent settings

Working with ShadCN components:

# Install a new component
npx shadcn-ui@latest add button

# Update existing components
npx shadcn-ui@latest add button --overwrite

Linting and formatting:

# Run ESLint
npm run lint

# Fix linting issues automatically
npm run lint:fix

# Format code with Prettier
npm run format

📂 Project Structure

The frontend project follows a clean, modular, and scalable architecture:

objectvision-frontend/
├── app/                     # Next.js app-based pages and layouts
│   ├── (auth)/              # Authentication-related routes
│   ├── (dashboard)/         # Protected dashboard routes
│   ├── layout.tsx           # Root layout component
│   └── page.tsx             # Homepage component
├── components/              # Reusable UI components
│   ├── auth/                # Authentication-related components
│   ├── dashboard/           # Dashboard-specific components
│   ├── predictions/         # Object detection components
│   ├── layout/              # Layout components (header, footer, etc.)
│   ├── ui/                  # ShadCN UI components
│   └── pages/               # Actual Page components
├── configuration/           # Project settings and configurations
│   ├── api.config.ts        # API configuration
│   ├── constants.ts         # Application constants
│   └── settings.ts          # Environment variable management
├── hooks/                   # Custom React hooks
│   ├── api/                 # API-related hooks
│   ├── store/               # Redux store hooks
│   └── ui/                  # UI-related hooks
├── schemas/                 # Zod validation schemas
│   ├── auth-schema.ts       # Authentication form schemas
│   ├── detection-schema.ts  # Detection parameter schemas
│   └── user-schema.ts       # User data schemas
├── services/                # API services
│   ├── api-service.ts       # Base API service
│   ├── auth-service.ts      # Authentication service
│   └── detection-service.ts # Detection service
├── store/                   # Redux store configuration
│   ├── features/            # Redux slices and thunks
│   ├── providers/           # Redux provider
│   └── store.ts             # Store configuration
├── types/                   # TypeScript type definitions
│   ├── api-types.ts         # API-related types
│   ├── detection-types.ts   # Detection-related types
│   └── common-types.ts      # Common type definitions
├── utils/                   # Utility functions
│   ├── date-utils.ts        # Date manipulation utilities
│   ├── file-utils.ts        # Formatting utilities
│   └── promise-utils.ts     # Promise helpers
├── docs/                    # Generated TypeDoc documentation
├── .env.example             # Example environment variables
├── .eslintrc.js           # ESLint configuration
├── .prettierrc            # Prettier configuration
├── jest.config.js         # Jest testing configuration
├── next.config.mjs        # Next.js configuration
├── package.json           # Project dependencies and scripts
├── tailwind.config.js     # Tailwind CSS configuration
└── tsconfig.json          # TypeScript configuration

🛠️ Technologies Used

ObjectVision Frontend leverages a modern tech stack to deliver a performant and maintainable application:

Core Technologies

Next.js 15: React framework with server-side rendering, route handling, and optimized builds
TypeScript: Strongly-typed programming language for enhanced developer experience
React 18: UI library with concurrent rendering features

UI and Styling

ShadCN UI: Customizable component library based on Radix UI
Tailwind CSS: Utility-first CSS framework
Lucide Icons: Beautiful & consistent icon set
React Icons: Beautiful & consistent icon set

State Management

Redux Toolkit: Modern Redux with simplified logic
RTK Query: Built-in data fetching and caching

Form Management and Validation

React Hook Form: Efficient form handling
Zod: Schema validation library

Data Visualization

Recharts: Composable charting library
D3.js: Data-driven document manipulation

Testing

Jest: JavaScript testing framework
React Testing Library: Component testing utilities
Cypress: End-to-end testing

Documentation

TypeDoc: Documentation generator for TypeScript
Storybook: UI component documentation and testing

DevOps & Build Tools

ESLint: Code linting
Prettier: Code formatting
Husky: Git hooks
GitHub Actions: CI/CD pipeline

🔐 Environment Variables

ObjectVision Frontend uses environment variables for configuration. Create a .env.development file with the following variables:

# URLs
NEXT_PUBLIC_ENV=development
NEXT_PUBLIC_FRONTEND_URL=http://localhost:3000
NEXT_PUBLIC_LOGO_URL=http://localhost:3000/logo.png

NEXT_PUBLIC_BACKEND_URL=http://localhost:8000
NEXT_PUBLIC_API_BASE_URL=http://localhost:8000/api
NEXT_PUBLIC_GOOGLE_OAUTH_URL=http://localhost:8000/api/oauth

# Secret Keys
NEXT_PUBLIC_API_KEY=your-api-key
NEXT_PUBLIC_SECRET_KEY=your-secret-key
NEXT_PUBLIC_RAZORPAY_KEY_ID=your-razorpay-key

# Google Analytics Credentials (optional)
NEXT_PUBLIC_GTAG_ID=your-g-tag
NEXT_PUBLIC_GOOGLE_VERIFICATION_CODE=your-google-verification-code

For production deployment, set these variables in your hosting environment.

🔄 API Integration

ObjectVision Frontend communicates with the backend API using a standardized approach:

Service Example

Each API domain has its own service, for example services/detection-service.ts:

import axiosClient from '@utils/axios';
import { DetectionParams, DetectionResult } from '../types/detection-types';

export const DetectionService = {
  detectObjects: async (imageData: File, params: DetectionParams): Promise<DetectionResult> => {
    const formData = new FormData();
    formData.append('image', imageData);
    formData.append('params', JSON.stringify(params));

    const response = await apiClient.post('/detect', formData, {
      headers: {
        'Content-Type': 'multipart/form-data',
      },
    });

    return response.data;
  },

  getBatchStatus: async (batchId: string): Promise<BatchStatus> => {
    const response = await apiClient.get(`/batch/${batchId}/status`);
    return response.data;
  },

  // More detection-related API methods...
};

📊 State Management

ObjectVision uses Redux Toolkit for state management, organized into logical slices:

Store Configuration

The Redux store is configured in store/store.ts:

import { configureStore } from '@reduxjs/toolkit';
import { setupListeners } from '@reduxjs/toolkit/query';
import { api } from './services/api';
import authReducer from './slices/authSlice';
import detectionReducer from './slices/detectionSlice';
import uiReducer from './slices/uiSlice';

export const store = configureStore({
  reducer: {
    auth: authReducer,
    detection: detectionReducer,
    ui: uiReducer,
    [api.reducerPath]: api.reducer,
  },
  middleware: (getDefaultMiddleware) =>
    getDefaultMiddleware().concat(api.middleware),
});

setupListeners(store.dispatch);

export type RootState = ReturnType<typeof store.getState>;
export type AppDispatch = typeof store.dispatch;

Slice Example

Each feature has its own slice, for example store/slices/detectionSlice.ts:

import { createSlice, PayloadAction } from '@reduxjs/toolkit';
import { DetectionState, DetectionResult } from '../../types/detection.types';

const initialState: DetectionState = {
  results: [],
  isProcessing: false,
  currentBatchId: null,
  error: null,
  detectionParameters: {
    confidenceThreshold: 0.5,
    modelType: 'standard',
  },
};

export const detectionSlice = createSlice({
  name: 'detection',
  initialState,
  reducers: {
    startDetection: (state) => {
      state.isProcessing = true;
      state.error = null;
    },
    detectionSuccess: (state, action: PayloadAction<DetectionResult>) => {
      state.results.push(action.payload);
      state.isProcessing = false;
    },
    detectionFailed: (state, action: PayloadAction<string>) => {
      state.isProcessing = false;
      state.error = action.payload;
    },
    updateParameters: (state, action: PayloadAction<Partial<DetectionParameters>>) => {
      state.detectionParameters = {
        ...state.detectionParameters,
        ...action.payload,
      };
    },
    clearResults: (state) => {
      state.results = [];
    },
  },
});

export const {
  startDetection,
  detectionSuccess,
  detectionFailed,
  updateParameters,
  clearResults,
} = detectionSlice.actions;

export default detectionSlice.reducer;

🏗️ Building for Production

To create a production-ready build of ObjectVision Frontend:

Optimized build:
```
npm run build:prod
```
This creates an optimized build with:
- Code minification
- Tree shaking to eliminate unused code
- Image optimization
- Static HTML generation where applicable
Test the production build locally:
```
npm start
```
Analyze bundle size (optional):
```
npm run analyze
```
This generates a visual report of bundle sizes to identify optimization opportunities.
Deployment considerations:
- Enable caching headers for static assets
- Configure CDN for assets and API proxy if applicable
- Set up proper environment variables for the production environment
- Implement health checks and monitoring

🧪 Testing

ObjectVision Frontend implements a comprehensive testing strategy:

Unit Testing

Run unit tests with Jest:

# Run all tests
npm test

# Run tests in watch mode
npm test:watch

# Run tests with coverage report
npm test:coverage

Component Testing

Test UI components with React Testing Library:

npm run test:components

End-to-End Testing

Run end-to-end tests with Cypress:

# Open Cypress test runner
npm run cypress:open

# Run Cypress tests headlessly
npm run cypress:run

Visual Regression Testing

Compare UI snapshots for visual changes:

npm run test:visual

🔄 Continuous Integration

ObjectVision uses GitHub Actions for CI/CD. The workflow is defined in .github/workflows/ci.yml:

Pull Request Checks:
- Code linting and formatting
- TypeScript type checking
- Unit and component tests
- Bundle size analysis
Main Branch Deployment:
- Automated build and deployment to staging
- End-to-end tests on staging environment
- Manual approval for production deployment

⚡ Performance Optimization

ObjectVision Frontend implements several performance optimizations:

Code Splitting: Dynamic imports for route-based code splitting
Image Optimization: Next.js Image component for responsive images
Font Optimization: Local font hosting with optimized loading
Lazy Loading: Components and sections loaded only when needed
Memoization: React.memo, useMemo, and useCallback for expensive operations
Service Worker: Offline capabilities and asset caching
Bundle Analysis: Regular bundle size monitoring

👥 Contributing

We welcome contributions to ObjectVision Frontend! Here's how to get started:

Fork the repository

Create a feature branch:

git checkout -b feature/your-feature-name

Make your changes:
- Follow the coding standards and style guide
- Add tests for new features
- Update documentation as needed
Run the tests:
```
npm test
```
Submit a pull request:
- Provide a clear description of the changes
- Reference any related issues
- Include screenshots or GIFs for UI changes

❓ Troubleshooting

Common issues and their solutions:

Installation Problems

Issue: Dependencies fail to install correctly Solution: Clear npm cache and retry:

npm cache clean --force
rm -rf node_modules
npm install

Development Server Issues

Issue: Hot module replacement not working Solution: Check for conflicting global installations:

npm list -g next
# If found, uninstall global Next.js
npm uninstall -g next

Build Errors

Issue: TypeScript compilation errors during build Solution: Run type checking separately to identify issues:

npm run type-check

📄 License

This project is licensed under the MIT License - see the LICENSE file for details.

📞 Contact

Project Maintainer: SK Imtiaj Uddin
Email: imtiaj.kol@gmail.com
GitHub: @imtiaj-007
LinkedIn: @sk-imtiaj-uddin
Twitter: @imtiaj_007

Made with ❤️ by the ObjectVision Team
